IP1-CM MOB Car Lift

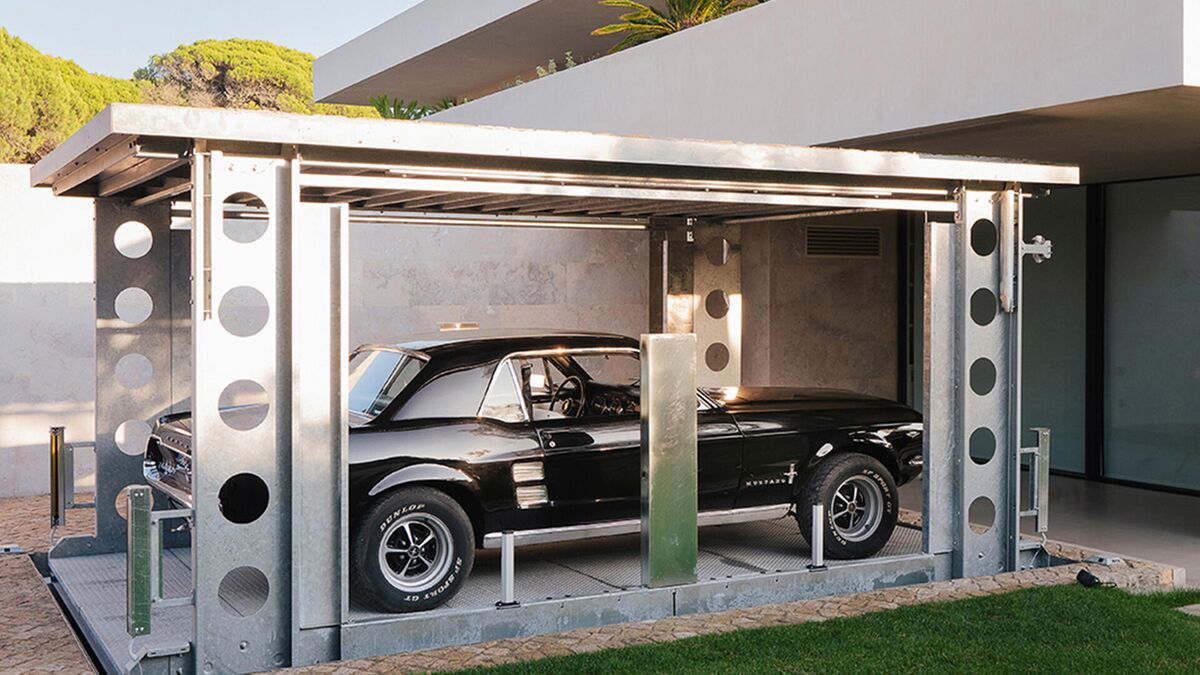

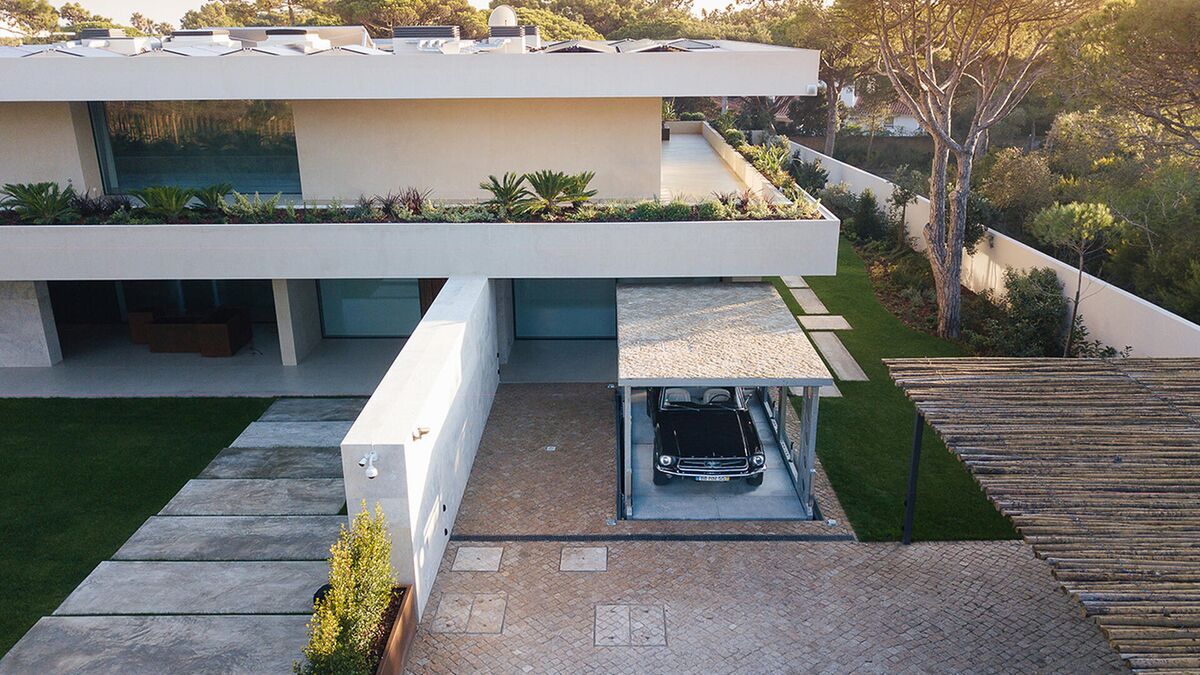

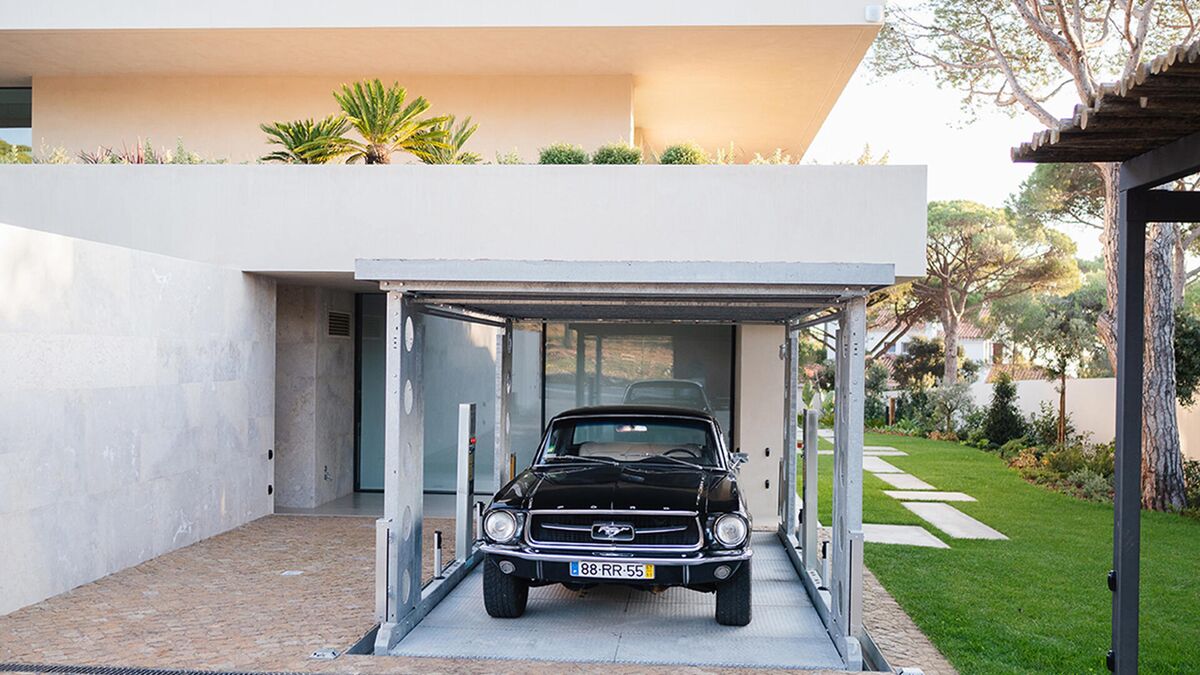

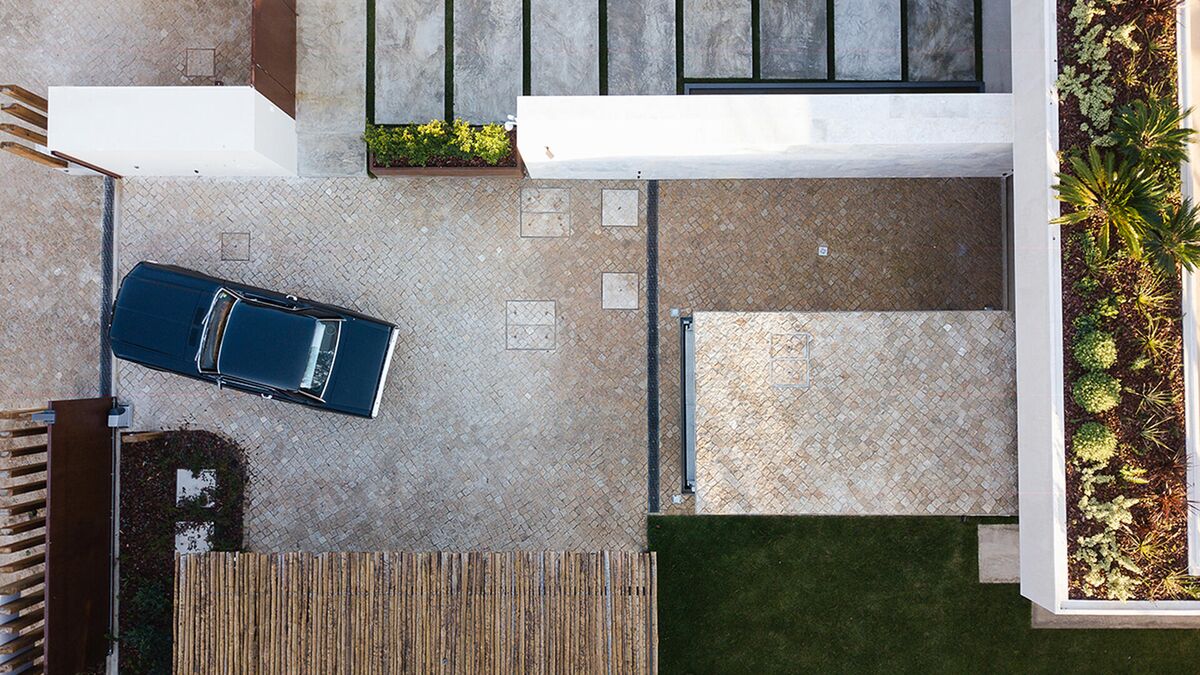

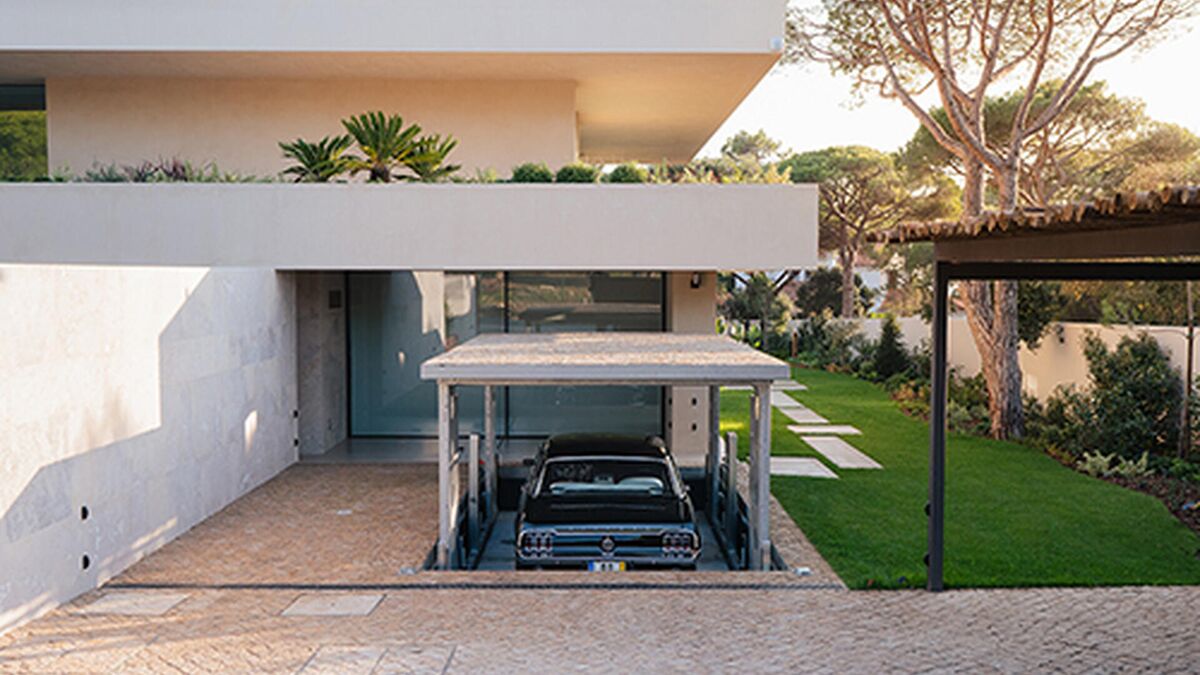

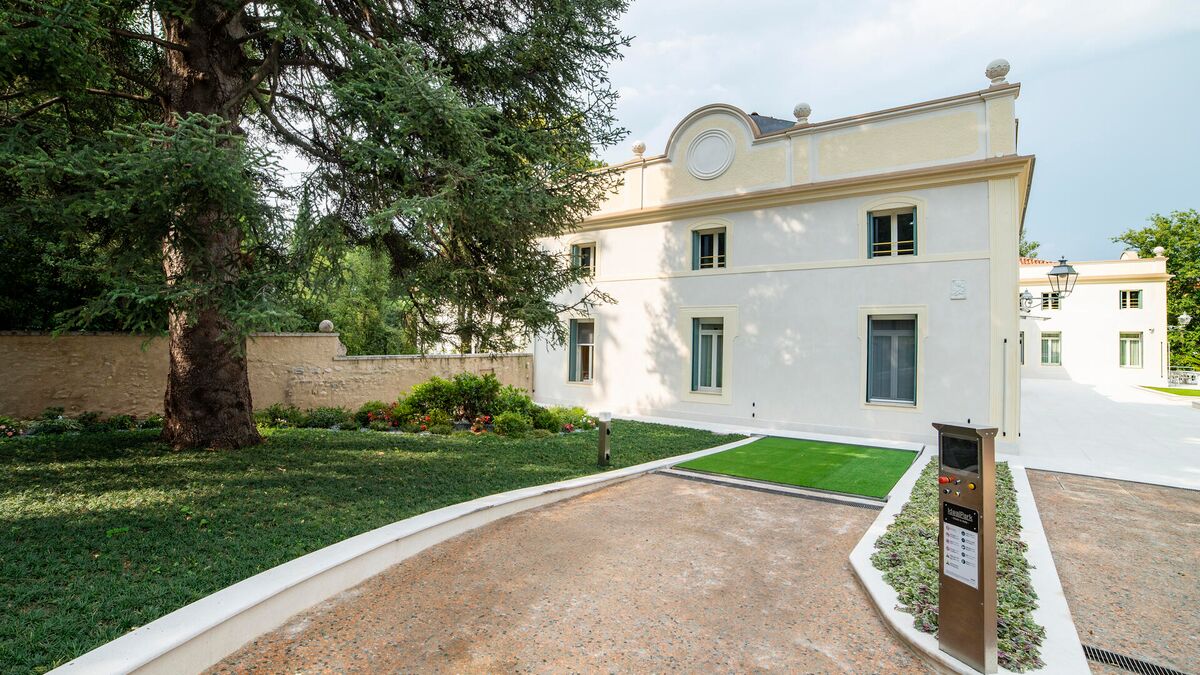

This car lift, with a covering lid, allows the space that would usually be taken by ramps to be converted into additional garden, drive or courtyard area.

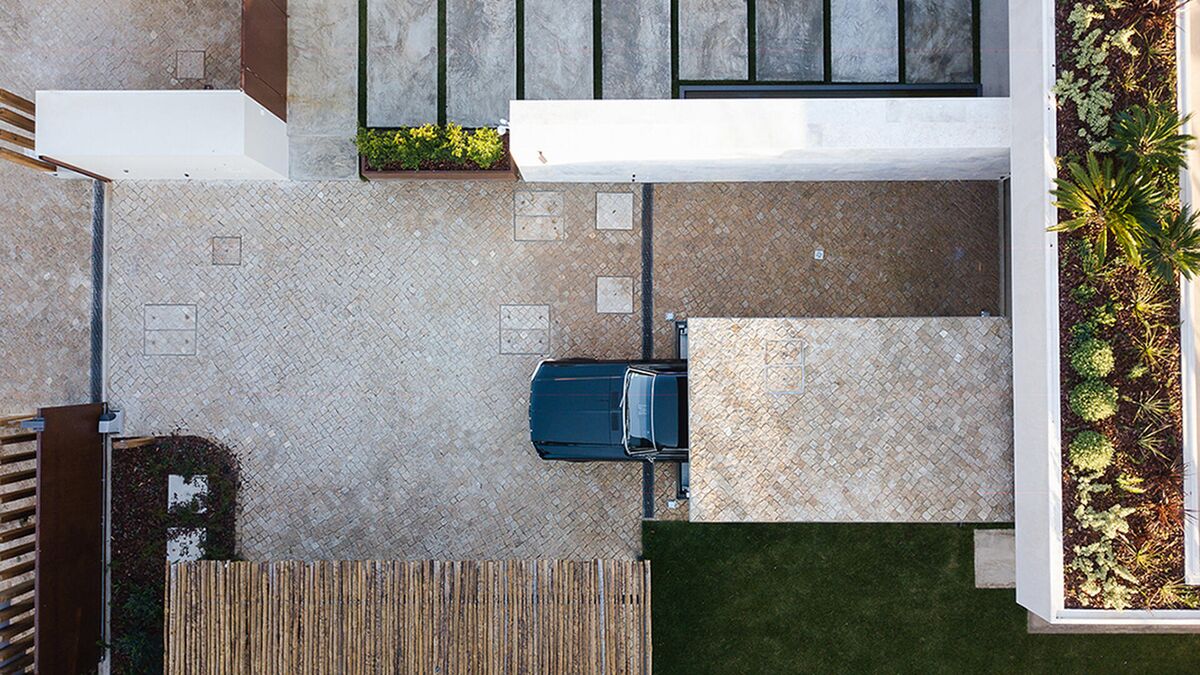

The lid can be covered in any material (up to 150 kg/m²) to match the surrounding area and conceal the lift when in its lowered position. Each lift is designed and manufactured according to the client’s specification to meet the needs of each individual project.

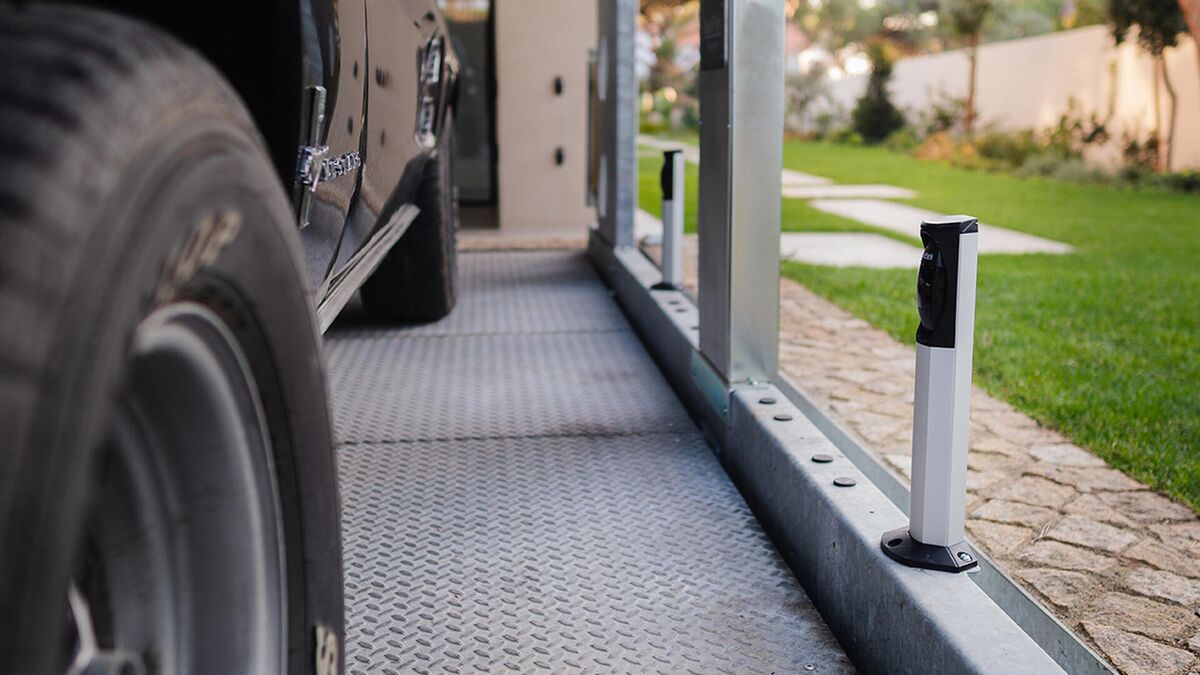

Using a system of infrared barriers, radar and laser scanners for safe operation, there is no need for unsightly fences or barriers to be installed around the lift at ground level. We include full diagnostic assistance tools to enable remote service to be undertaken from anywhere in the world.

Specifications

  • Platform width: 250 cm to 270 cm (280 cm for XL lift)
  • Platform length: 500 cm to 560 cm (650 cm for XL lift)
  • Loading capacity: 2700 kg (3500 kg for XL lift)
  • Travel: up to 5 m
  • Pit depth: 70 cm (90 cm for XL lift)
  • Max cover load: 150 kg/m² (90 kg/m² for XL lift)
